ID # 14327604

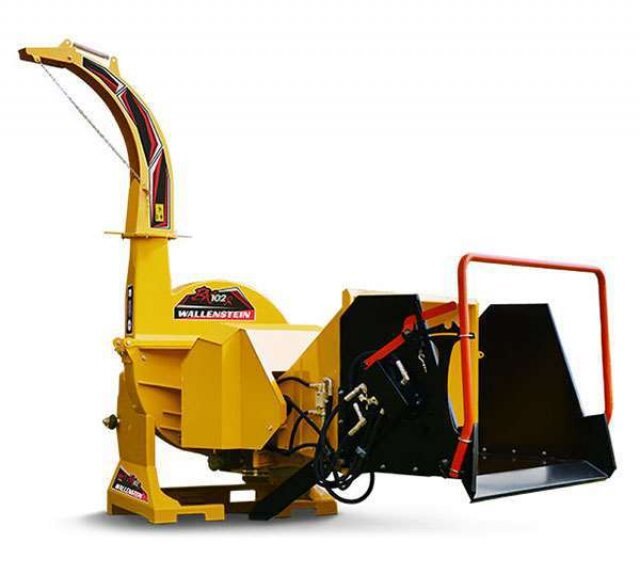

Wallenstein BX102RP Wood Chipper

Videos
Call for Price
Overview

With a PTO powered rotor and hydraulic feed hopper, branches, limbs and brush up to 10" in diameter are control fed for continuous chipping at maximum capacity.

  Features

http://www.wallensteinequipment.com/file.ashx?id=9a680524-f773-4c89-b294-2de3bc22c015&h=600&w=600

Oversized Chipping Rotor

http://www.wallensteinequipment.com/file.ashx?id=fd1c4c9f-dd74-44e6-ac4d-d50f1c53efd9&h=600&w=600

Reversible Chipping Blades

http://www.wallensteinequipment.com/file.ashx?id=fc92caf3-77f9-4cd3-85cc-2de8bc2f6d19&h=600&w=600

Adjustable Chute

http://www.wallensteinequipment.com/file.ashx?id=f411d035-4e37-4101-8d4b-1b7028f0c780&h=600&w=600

Hydraulic Feeding Hopper

http://www.wallensteinequipment.com/file.ashx?id=a2bd493a-b556-49dd-91c4-7711a37b900a&h=600&w=600

PTO Drivetrain, Shearbolt protected

http://www.wallensteinequipment.com/file.ashx?id=027a2f8c-623c-4104-b24f-368870836b3b&h=600&w=600

Pick Your Colour

http://www.wallensteinequipment.com/file.ashx?id=18eb3c0f-10be-4f0f-99ac-716e941c8a68&h=600&w=600

Slab Style Opening

http://www.wallensteinequipment.com/file.ashx?id=9c6e2568-27e0-4859-9323-18a564f47fc0&h=600&w=600

iMatch Quick Hitch Compatible

http://www.wallensteinequipment.com/file.ashx?id=8b4b551d-6baa-4111-97ce-a758b1f095cc&h=600&w=600

Dual Active Rollers

http://www.wallensteinequipment.com/file.ashx?id=5daeec92-c625-492c-b78e-ead79cd74a60&h=600&w=600

Safety Control Bar

http://www.wallensteinequipment.com/file.ashx?id=9c2be7ff-65fe-4ddb-a3d5-8b6e5d88a4ad&h=600&w=600

Top Roller Hydraulic Lift

http://www.wallensteinequipment.com/file.ashx?id=41baad5d-8fe3-4b09-b5fa-2ba567961d5f&h=600&w=600

Hydraulic Winch



Specifications
Model
BX102RP Wood Chipper
Year
2019
Sale Type
New
Manufacturer
Wallenstein
Drive System
PTO Direct Drive
HP Requirements For Maximum Capacity
90 -120
HP Range
65 - 150
Number Of Rotor Knives
4
Hopper Opening
30'' x 42'' (76 cm x 107 cm)
Discharge Hood Rotation
360°
Discharge Hood Height
100'' (253 cm)
Rated RPM
540 - 1000
Chipping Capacity:
10'' (25 cm)
Chipper Type:
Disc
Minimum Required Hydraulic Flow:
4 - 8 gpm (15 - 30 lpm)
Housing Opening:
10'' x 17'' (25 cm x 43 cm)
Rotor Diameter:
36” (92 cm)
Rotor Weight:
425 lbs (193 kg)
Dimensions Open (LxWxH):
108'' x 85'' x 100'' (273 cm x 215 cm x 253 cm)
Dimensions Closed (LxWxH):
85'' x 71'' x 100'' (215 cm x 180 cm x 253 cm)
Total Weight:
2100 lbs (953 kg)
PTO Height:
34'' (86 cm)
Mounting System:
Cat II, iMatch™ & Quick Hitch Compatible
Feed System:
Dual Hydraulic Roller Feed
Winch Rope Length:
50' (15 m)
Winch Rope Diameter:
1/4
Winch Pulling Capacity:
1200 lbs (545 kg)
